Electrical Diagrams
Electrical Diagrams
Find the wiring diagrams you need with our collection of fully digitized diagrams sourced directly from The Mini Forum. Archived here for postarity and preservation.
Positive Ground
- Mini Super/Super Deluxe/Countryman/Traveller/Cooper1959 - 1964
- Mini Standard and Deluxe1959 - 1964
- Mini Saloon/Van/Pickup1964 - 1967
- Mini Cooper/Cooper S/Countryman/Traveller/Super Deluxe1964 - 1967
- Mini Super Deluxe/Countryman/Traveller/Cooper/Cooper S Mk2Dates Unknown
- Mini Standard Saloon/Van/Pickup Mk2Dates Unknown
- Mini Moke1959 - 1967
- Mini Moke Mk2Dates Unknown
Negative Ground
British Leyland
Early Rover
- Mini 850 Saloon/Van/Pickup1976 - 1989
- Mini 1000 - Mini Special1976 - 1989
- Mini Clubman/Estate/1275GT1976 - 1989
- Mini Special1977 - 1978
- Mini Single Instrument Pack1984 - 1989
- Mini Multi-Instrument Pack1984 - 1989
- Mini1988 - 1989
- Twin Gauge Instrument Pack With Integral Voltage Stabilizer? - 1989
- Triple Gauge Instrument Pack With Intergral Voltage Stabilizer? - 1989
- Mini Turbo Model? - 1989
Later Rover
- Late Carb Models1988 - 1993

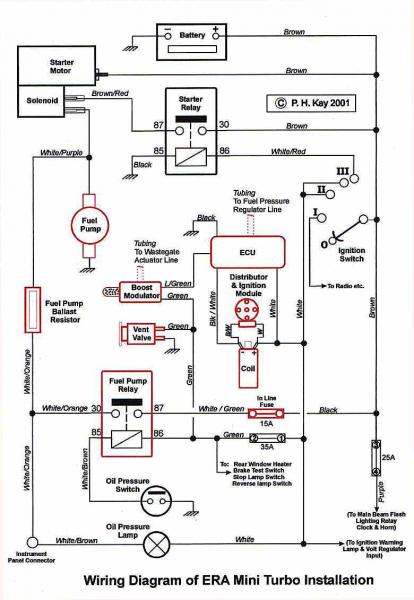

- ERA Turbo Mini Installation1988 - 1993
- Power Distribution - Carburetter Models1992 - 1996
- Power Distribution - SPI Models1992 - 1996
- Exterior Lamps and Horn1992 - 1996
- Driving and Fog Lamps1992 - 1996
- Reverse Lamps/Brake Lamps/Heated Rear Window Circuit1992 - 1996
- Direction Indicator and Hazard Warning1992 - 1996
- Instruments1992 - 1996
- Interior Lamp Circuit1992 - 1996
- Heater & Automatic Gearbox Selector Illumination Circuitsheater & Automatic Gearbox Selector Illumination Circuits1992 - 1996
- Engine Management1992 - 1996
- Anti-Theft Alarm1992 - 1996
- Wash Wipe Circuit1992 - 1996
- Auxiliary Cooling Fan and Brake Test Circuits1992 - 1996
- Radio Cassette Player1992 - 1996
- Sunroof Circuit1992 - 1996
- Headlamp Levelling Circuit(Germany)1992 - 1996
SPI Minis 95-96

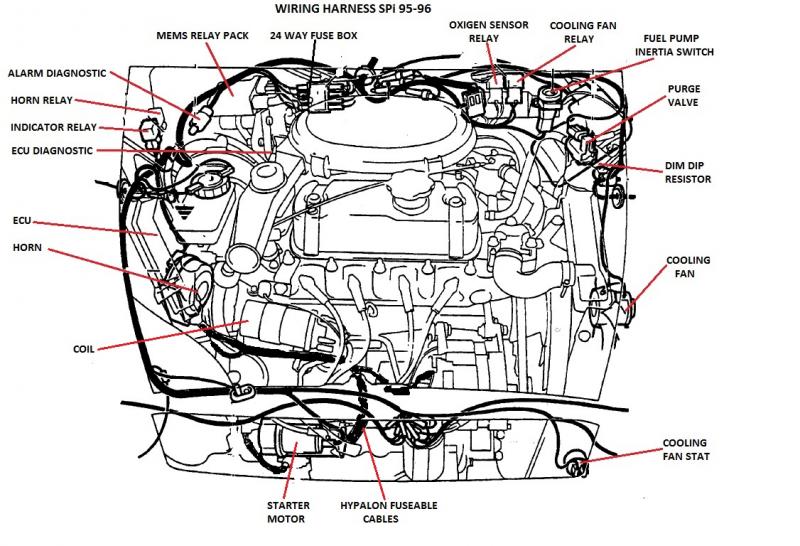

- General Harness1995 - 1996
- 24 Fuse Engine Bay Fuse Box1995 - 1996

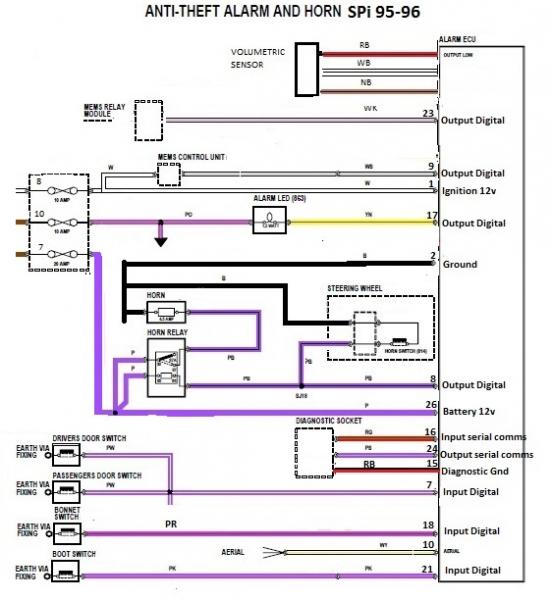

- Anti-Theft Alarm and horn1995 - 1996

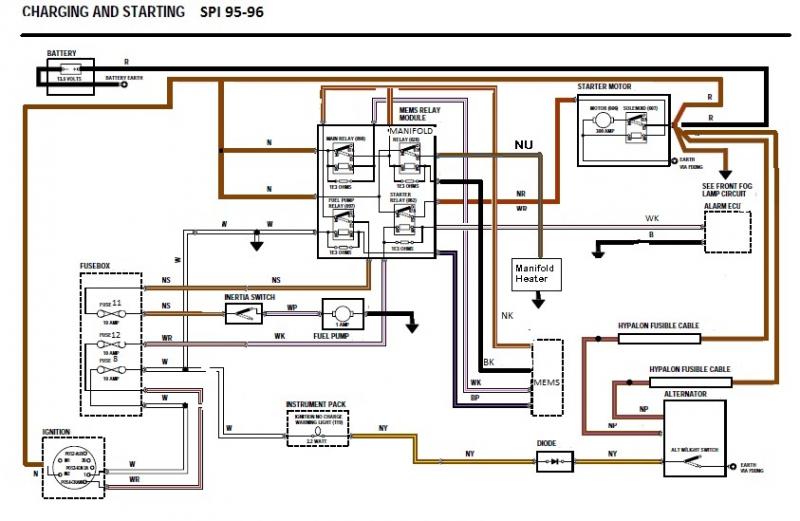

- Charging and Starting1995 - 1996

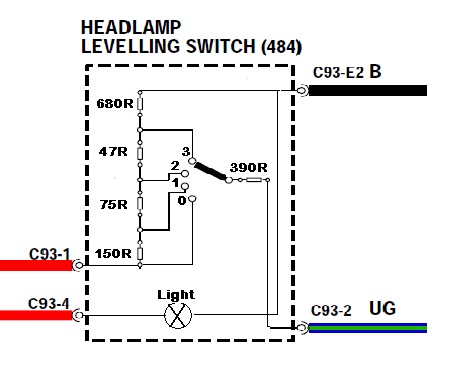

- Headlamp Level Switch1995 - 1996

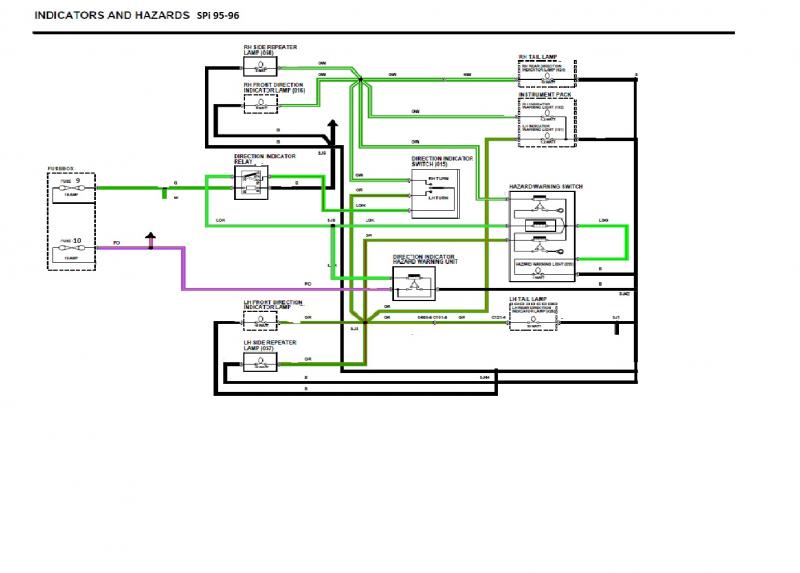

- Indicators and Hazards1995 - 1996

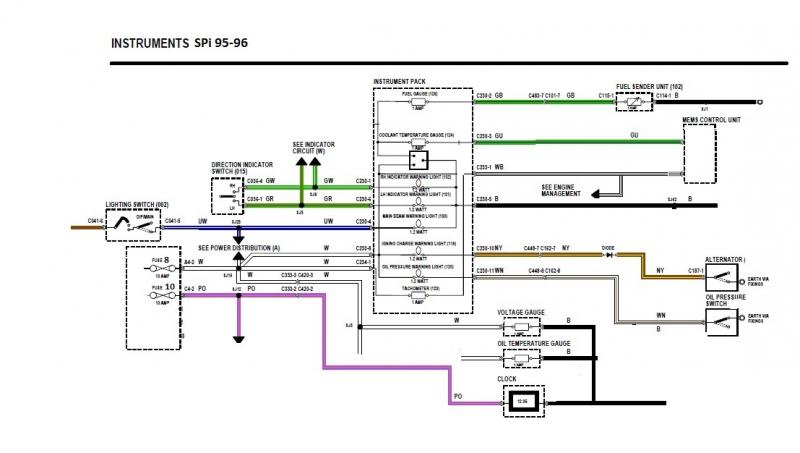

- Instruments1995 - 1996

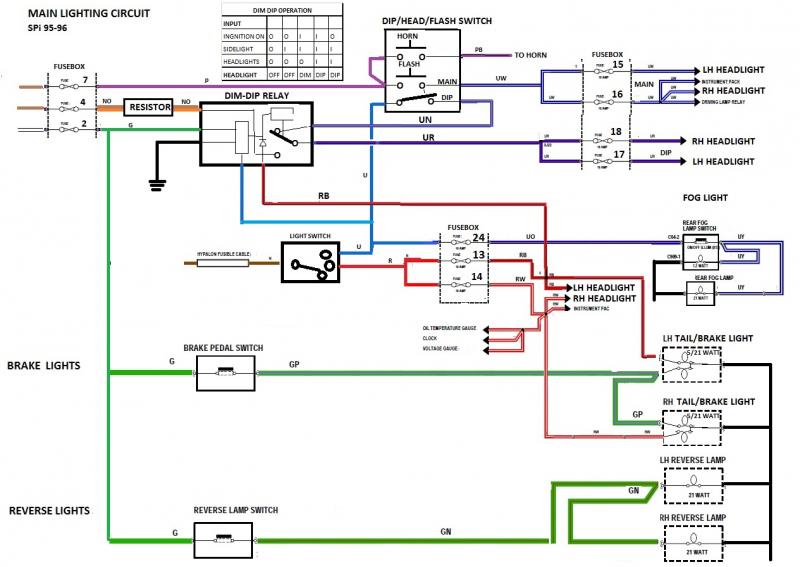

- Main Lighting Circuit1995 - 1996

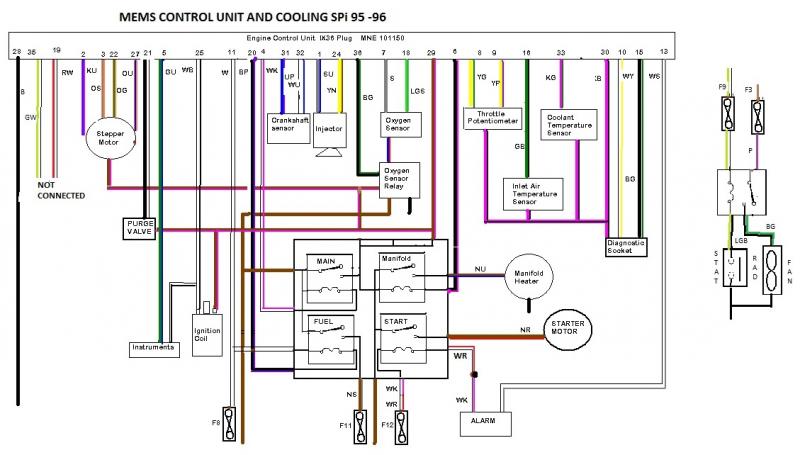

- MEMS Control Unit and Cooling1995 - 1996

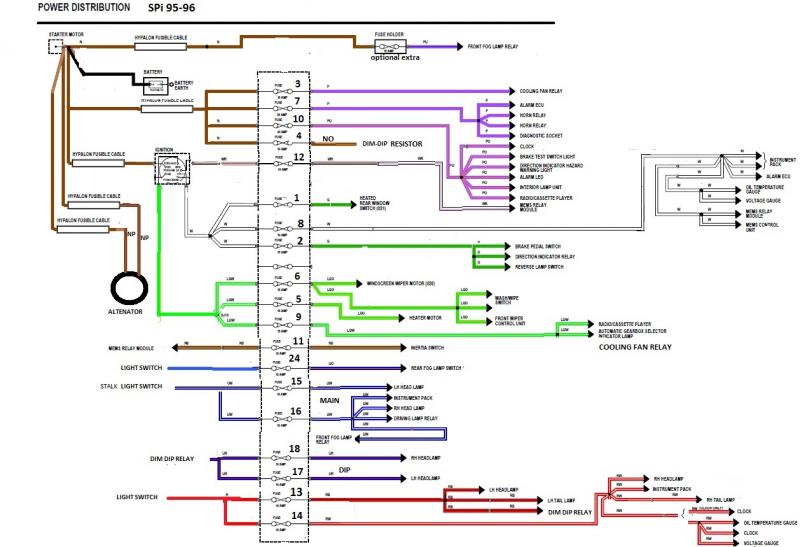

- Power Distribution1995 - 1996
